Ingenieros y Partner’s Certificados de Peplink
Este modelo está pensado para negocios grandes, el número de usuarios recomendado es de 6000 a 20000 y es completamente transparente.

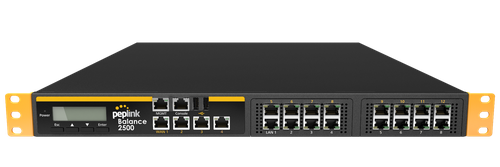

Balanceador de ADSL transparente rackable, con 12 puertos WAN y 8 Gb LAN, soporta hasta 8000Mbps de throughput(*).
Este modelo está pensado para negocios grandes, el número de usuarios recomendado es de 6000 a 20000 y es completamente transparente.
Respecto a modelos inferiores, tiene una serie de funcionalidades adicionales como el soporte de hasta 4000 conexiones VPN punto a punto contra otro equipo Peplink con soporte de VPN, QoS para VoIP y comercios online, posibilidad de trabajar en backup 1+1 con otro equipo peplink, y unos algoritmos para realizar los balanceos de carga más optimizados y con otros criterios que los modelos inferiores.
El throughput es la suma total del tráfico entrante y saliente, por ejemplo si se tienen dos ADSL de 6Mbps de bajada y 1Mbps de subida en total se necesitan 6+6+1+1=14Mbps. SI se tienen ADSL superiores se requiere un modelo de Peplink superior.
Compara los diferentes modelos para decidir el modelo que necesitas para tu instalación en la parte superior de esta página.
Toda la documentación adicional, demos online y tutoriales para su implementación y configuración se pueden encontrar en la web del fabricante.
Las especificaciones del fabricante pueden variar sin previo aviso.
Usuario administrador de la demo: admin
Contraseña administrador de la demo: admin
Especificaciones Técnicas:
| Product Code | BPL-2500* |
| Ethernet WAN Ports | 12 (GE)/4 (GE) & 2 (10G SFP+)* |
| LAN Ports | 8 (GE)/2 (10G SFP+)* |
| USB WAN Modem Port [1] | 1 |
| Recommended Users [2] | 5000-20000+ |
| Stateful Firewall Throughput [3] | 8Gbps |
| 802.1q VLANs Supported | 1024 |
| Port-Based VLAN | Yes |
| Load Balancing & Failover | Yes |
| Load Balancing Algorithms | 8 |
| Drop-In Mode | Yes |
| Inbound Load Balancing | Yes |
| InControl Cloud Management | Yes |
| PepVPN | Yes |
| SpeedFusion Hot Failover | Yes |
| SpeedFusion WAN Smoothing | Yes |
| SpeedFusion Bandwidth Bonding | Yes |
| Number of PepVPN/SpeedFusion Peers [4] | 4000 |
| PepVPN Throughput (256-bit AES)/(No Encryption) [3] | 2Gbps |
| IPsec VPN (Network-to-Network) [5] | Yes |
| Number of IPsec Tunnels | 800 |
| Remote User Access | Yes |
| L2TP VPN Server | Yes |
| OpenVPN Server | Yes |
| PPTP VPN Server | Yes |
| Recommended PPTP/L2TP/OpenVPN Users | 1000 |
| GRE (Network-to-Network) | 5 |
| Pepwave AP Series Management | Yes |
| Maximum Number of AP Supported | 1500 |
| Remote AP & Multiple Config Profiles Management [6] | Yes |
| Bandwidth Usage Monitor | Yes |
| QoS for VoIP and E-Commerce | Yes |
| User Groups Bandwidth Control | Yes |
| Web Blocking | Yes |
| Web Filtering Blacklist | Full |
| Operating Temperature | 32° – 104°F / 0° – 40°C |
| LACP (802.3ad) NIC Bonding | Yes* |
| Power Consumption | 230W |
| Dimensions | 20 x 17 x 1.73 inches | 508 x 432 x 44 mm |
| Weight | 20.2 pounds | 9.14 kg |
| High Availability | Yes |
| LAN Bypass | Yes |
| Dual Hot Swap | Yes |
| FCC, CE, RoHS | Yes |
| Warranty | 1-Year Limited Warranty |
[1] For a list of supported modems, please refer to https://www.peplink.com/technology/4g3g-modem-support/.
[2] Recommendation for sizing purposes only. No software restrictions applied.
[3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
[4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
[5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
[6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
